Music Sync controller, sound active, sound to light, audio activate, 3*9groups = 27 channels, DC 12V for common anode fixtures.
  • Selleren.ilafiu.de
  • Price ofUS$120.00
  • Your Price
  • ShippingFree Shipping
  • Discount% off
  • Ratings3.8 (507)

Image Details

Music Sync controller, sound active, sound to light, audio activate, 3*9groups = 27 channels, DC 12V for common anode fixtures. - 1Music Sync controller, sound active, sound to light, audio activate, 3*9groups = 27 channels, DC 12V for common anode fixtures. - 2Music Sync controller, sound active, sound to light, audio activate, 3*9groups = 27 channels, DC 12V for common anode fixtures. - 3Music Sync controller, sound active, sound to light, audio activate, 3*9groups = 27 channels, DC 12V for common anode fixtures. - 4Music Sync controller, sound active, sound to light, audio activate, 3*9groups = 27 channels, DC 12V for common anode fixtures. - 5

Product Details

27 Channels RGB LED MUSIC CONTROLLER
Flexible RGB LED Strip Controller

Please be noted that we don't include any LED strips or DC power adater in this selling list, you have to buy LED strips and DC power adapter by yourself.
We only provide the controller unit only.

You can seach in YouTube to see how our music sync controller works.

Search:  RGB LED Music Sync controller
From ID: MusicSync LED

And seach:  90cm diameter big size music synchronization LED decoration light
From ID: LED MusicSyn

Controller Specifications:
(1) 3 X 9 = Total 27 RGB channels
(2) DC Voltage Input: 5-18V. Never power the unit with AC110-240V directly. You need an AC-DC adapter.
Max DC current input: 30A
(3) Size: 14.5cm X 9cm X 4cm. Net Weight: 320g


Sound to Light, Sound 2 Light, 27 channels, Music / Audio / Microphone Synchronization RGB LED Controller, Audio Spectrum/VU meter/Color Organ

Multi Channels MUSIC / AUDIO / MICROPHONE SYNCHRONIZATION RGB LED CONTROLLER


This RGB-LED-MUSIC-CONTROLLER is perfect for RGB LED flexible strips (or other RGB LED fixtures) for music / audio / microphone synchronization. It's much much more than a simple LED VU-meter or color organ! You can watch the videos of our controller's  application which will show the difference with other simple sound to light controllers. Our RGB-LED-MUSIC-CONTROLLER is MCU based and RGB enabled with soft elastic recovery of visual effects after each audio beat.



Quick Start Guide for using the controller

Step 1:

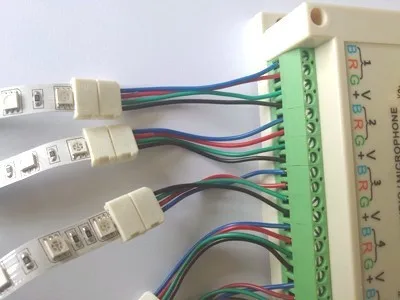

Connect the LED RGB flexible strips to each screw terminals, pay attention to your LED strips' R G B & V+ wires to match the terminals respectively. Tips: you can connect mutiple strips to one terminal, it's up to your lighting sketch design, just let your imagination roar.... aeProduct.getSubject()aeProduct.getSubject()
If your connection is all correct, the LED strips will light up with the internal sequence: Red color, Blue color, and then Green color. This is the default shipment setting in order to let you test and check your LED fixtures' connection at your very first time powering up the unit. It's not music synchronization now. Are you eager to rush into music sync lighting? let's go to step 3.



Step 3:

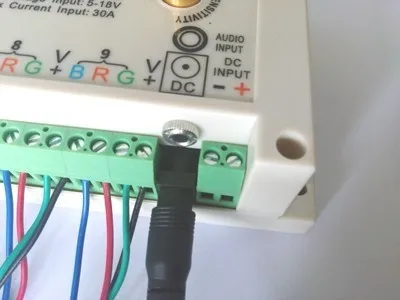

With your 12V DC adapter still powering on the unit, push the black tactile switch one time,  you will find all the LED lightings are off. OK, now we arrive at the music-sync-ready station. Now connect your music/audio/microphone input to the AUDIO INPUT port, you will find the LED fixtures is sound to light (music-sync) now! You can adjust the VOLUME SENSITIVITY knob to adjust your lighting responsiveness.
aeProduct.getSubject()
Now wake up your imagination!
Below we show you some sample RGB LED strips wiring connections to our controller.

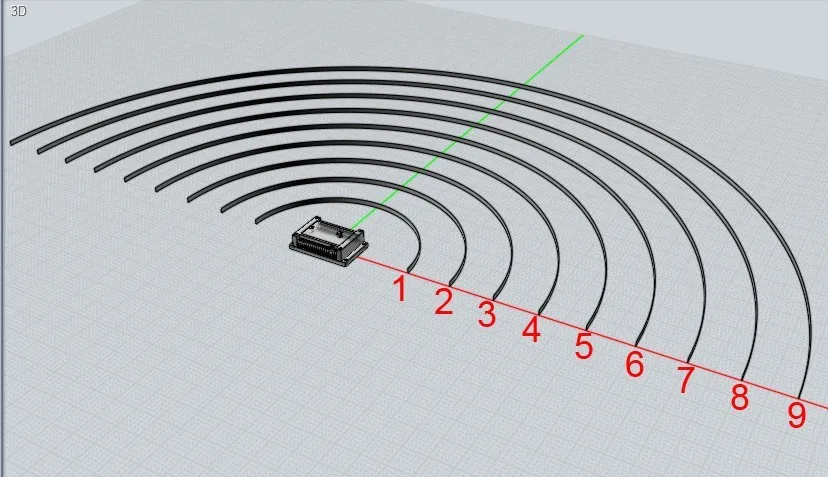

1. Sunrise with 1 strip to each screw terminal. aeProduct.getSubject()

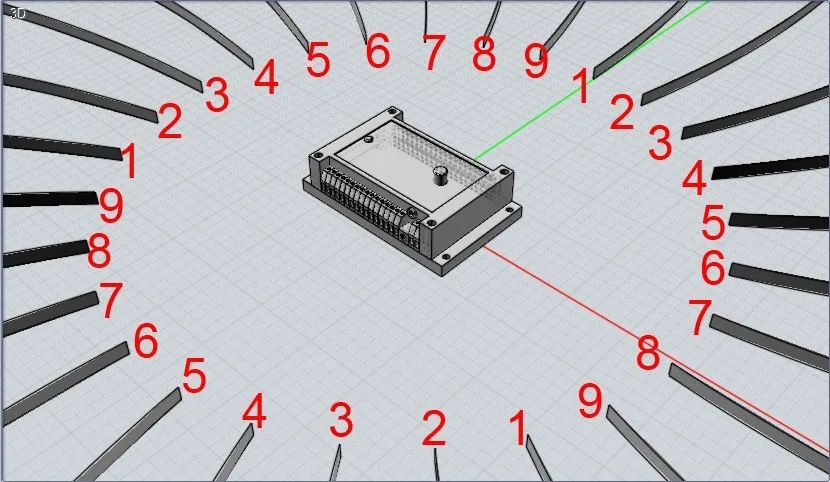

.2. Spiral Sun with 3 strips to each screw terminal.aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()3. Horizontally Symmetrical with 2 strips to each screw terminal

aeProduct.getSubject()

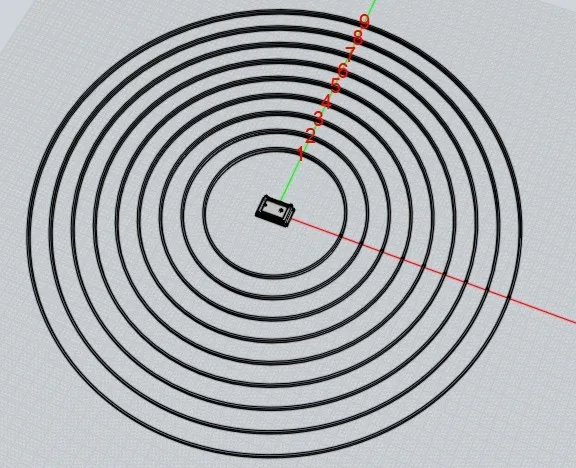

4. RGB circles with 1 strip to each screw terminal
. aeProduct.getSubject()
We provide the controller unit, you are the boss of your imagination.

Accessories:

We provide below 3 accessories free of charge in package:

(1) 1.5 meter length audio cable (male to male)
aeProduct.getSubject()

2) Audio splitter
aeProduct.getSubject()
aeProduct.getSubject()
That's it! You don't need to study any computer software and you can be a professional stage lighting designer, just with our music-sync LED controller!

aeProduct.getSubject()
Pls feel free to contact us for further inquiry! We can also provide you personalized Light Design based on our Music Sync Controller.

You can seach in YouTube to see how our music sync controller works.

Search:  RGB LED Music Sync controller
From ID: MusicSync LED

And seach:  90cm diameter big size music synchronization LED decoration light
From ID: LED MusicSyn

Sound Active, Sound Activate, Sound to Light, S2L, Sound Activated  27 channels (RGB * 9 groups) LED RGB high power controller

.......The End.........
